Modular Air-Cooled Scroll
 Chiller

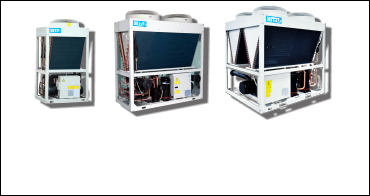

20/30/35 kW
55/60/65 kW
130 kW
Basic Model
 Maximum 16 Combination
 R22 type Standard
 R410a is optional

Model

ICH-100 5 G1

ICH-200 5 G1

ICH-400 5 G1

Power supply


V/PH/Hz

380V / 3PH / 50Hz / 60Hz

Cooling

Capacity

BTUH

102,500

222,000

445,000

Power input

kW

11.1

22.0

44.0

Compressor

Brand


Copeland

Quantities

Pcs

1

2

4

Refrigerant

type


R22 / R410a (option)

Control method


EXV + Capillary

Condenser (Air side)

Air side heat-exchanger type


Copper pipe / Aluminum fin

Quantities of fan motor

Pcs

1

2

4

Air flow volume

m3/h

12,000

24,000

48,000

Evaporator (Water side)

Water side heat-exchanger


Shell and tube heat-exchanger

Water pressure drop

kPa

30

30

40

Water inlet / outlet diameter

mm

DN40

DN100

DN65

Water flow volume

m3/h

5.16

11.18

22.36

Water pipe connection


Flange

Dimension

L*W*H

mm

1160*2090*900

2000*2090*900

2000*2090*1700

Net Weight


kg

320

570

1,100

Specifications

Modular design concept, a good solution for agencies to make stocks. Excellent flexibility in installation, max. 16 units can be combined in group, max. capacity can be up to 2080kW.

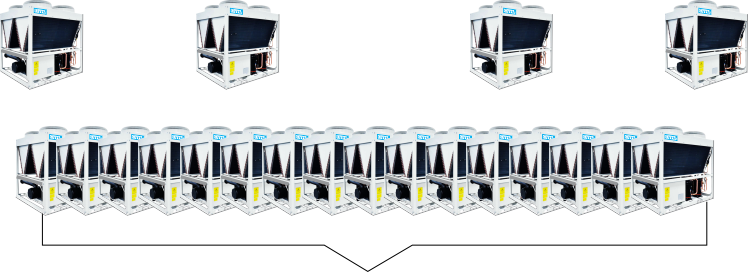

Maximum 16 numbers of 130 kW

2080 kW

+

+

+

+

=

…

R410A(HFC), low carbon footprint, no harm to Ozone.

ECO friendly

R410A(HFC), low carbon footprint, no harm to Ozone

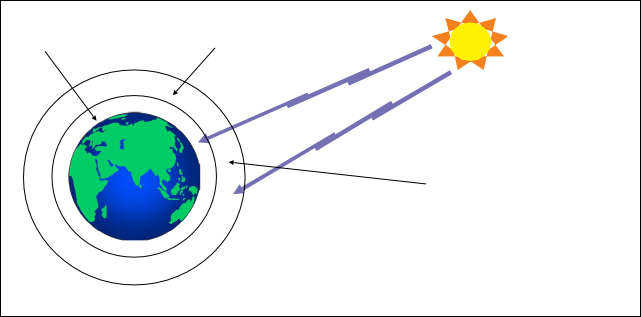

Ozone, Protects us from  UV light.

R22(HCFC) is destroying Ozone.

R410A(HFC) no harm to Ozone (ODP=0)

Stratosphere

Troposphere

Comparison with Small/Light AC

Features：

- Suitable for the building whose exterior wall is not allowed to install outdoor units, chillers can be place  on roof floor or ground floor.

- Suitable for the case of outdoor units are far away from indoor side.

- Suitable for the building who has plenty of rooms, use chillers can reduce the initial cost.

Cost：

- Area smaller than 1000m2,Small/Light AC is cheaper

- Area Between 1000m2 & 3000m2, equal

- Area larger than 3000m2, chiller is cheaper

Design proposal：

- Capacity ratio between FCU & Chiller can be up to 1.4:1, lower the cost

-Modular concept, easy for future capacity extension


Comparison with VRF

- Low initial cost

- Excellent compatibility, can be used with any brand's FCU/AHU

- Modular concept, easy for future capacity extension

- No limitation of height & length. Cooling and heating capacity will not attenuate when piping height or  piping length is too long.

- Easy for installation & commissioning.

- No refrigerant leakage risk.

- Control system is simple and high reliability.
