Cassette Type

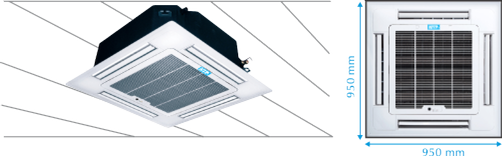

4-Way Cassette   16k BTU - 60k BTU, standard type, 950*950


Features
1. Brand new panel design
Simple, featly and voguish appearance suit for different requirements, it’s mostly used for office, shopping center, restaurants, meeting room and etc.
2. 4-way air flow, cold air can reach each corner of the room, providing a stable and comfortable environment
3. 3 fan speed, meet for different requirement
4. Three dimensional centrifugal fan design
5. Ultra thin body design, the minimum height is only 230 mm, save installation space (only for 18k & 24k)
6. Intelligent auto saving function, three modes for choice
7. Easy and convenient installation and maintenance, washable filter design
8. Fire resistant deign, the e-box with galvanized steel built-in body easy for maintenance
9. Fresh air intake
10. Multi protection and auto restart function
11. Built-in water pump, water head up to 800 mm
12. Energy saving and healthy, adopting hydrophilic aluminum increasing heat-exchange efficiency
13. Standard for wireless controller, option for wired controller

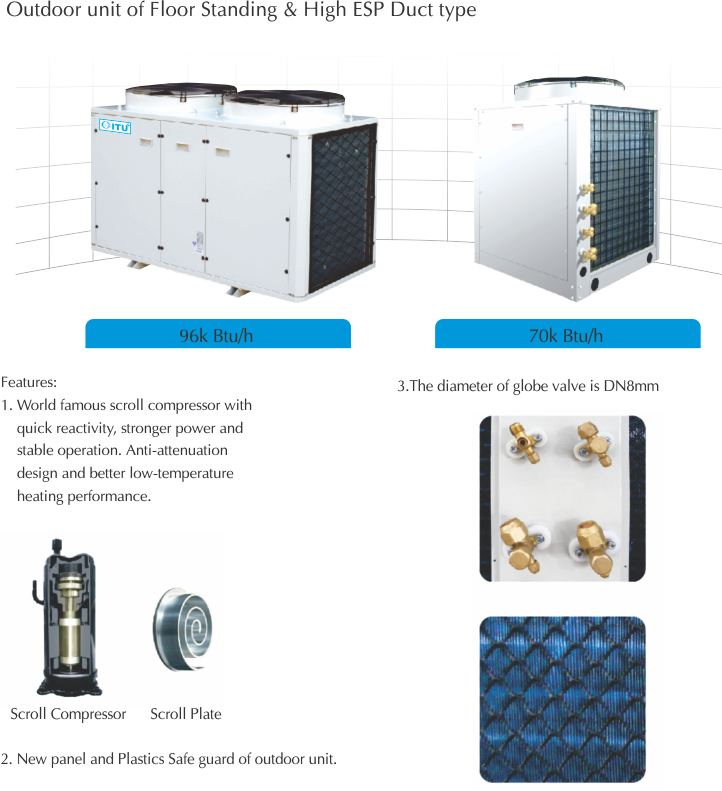

Floor Standing
Single Split

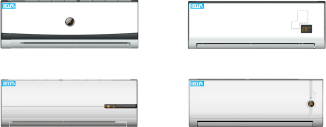

Wall Mount

WALL MOUNT & CONDENSER

MODEL

Cooling Model

INDOOR

IWT 9 5G1

IWT 12 5G1

IWT 18 5G1

IWT 24 5G1

IWT 30 5G1

OUTDOOR

ICU 9 5G1

ICU 12 5G1

ICU 18 5G1

ICU 24 5G1

ICU 30 5G1

Power Sources

V /Æ /Hz

220-240V /Æ / 50Hz

Cooling Model

Capacity

Btu/h

9200

12200

18000

24000

30

Input Power

W

920

1230

1895

2445

3350

Input Current

A

4.1

5.6

8.6

11.5

15.4

Cooling

Cooling Capacity

Btu/h

9200

12200

18000

24000

30000

Input Power

W

920

1230

1895

2445

3350

Input Current

A

4.1

5.6

8.6

11.5

15.4

Air Flow

Indoor Unit

CFM / CMH

265/450

294/500

500/850

599/960

750/1300

Noise Level

Indoor Unit

dB(A) t 3

32

35

42

44

49

Outdoor Unit

dB(A) t 3

49

54

54

56

61

Control System

Refrigerant Flow Control

Type

R-22 Outdoor Capillary Tube

Operating Control

Type

Wireless Remote Controller

Connecting Pipe size

Liquid

inch (mm)

1/4" ( 6.35)

114" ( 6.35)

3/8" (9.52 )

Gas

Inch (mm)

3/8" ( 9.52 )

1/2" ( 12.7 )

5/8" ( 15.9 )

Air Filter System


Pipe

Washable Saran Net

Net Dimensions WXHXD

Indoor Unit

mm ± 5

760x245x193

790x270x193

1020x320x215

1020x320x216

1250x325x267

Outdoor Unit

mm ± 5

660x433x248

760x540x260

760x590x270

843x705x315

885x870x300

Packing Dimensions WxHxD

Indoor Carton

mm ± 5

830x308x265

875x355x285

1120x410x322

1120x410x322

1320x380x330

Outdoor Carton

mm ± 5

820x535x385

885x610x360

925x655x365

1030x780x445

945x930x430

Net Weight

Indoor Unit

KG ±0.5

7.5.

9

14

14

17

Outdoor Unit

KG ±0.5

25

32

37

50

65

Gross Weight

indoor Unit

KG ±0.5

9.5.

11

17

17

22

Outdoor Unit

KG ±0.5

28

36

42

56

70

Container Loading quantity (Set)

20' GP

129

113

85

66

49

40' GP

291

230

168

135

97

40' HQ

310

250

188

150

110

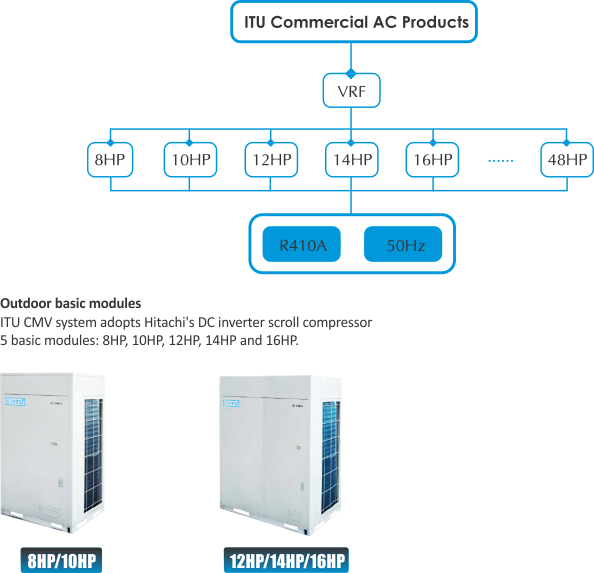

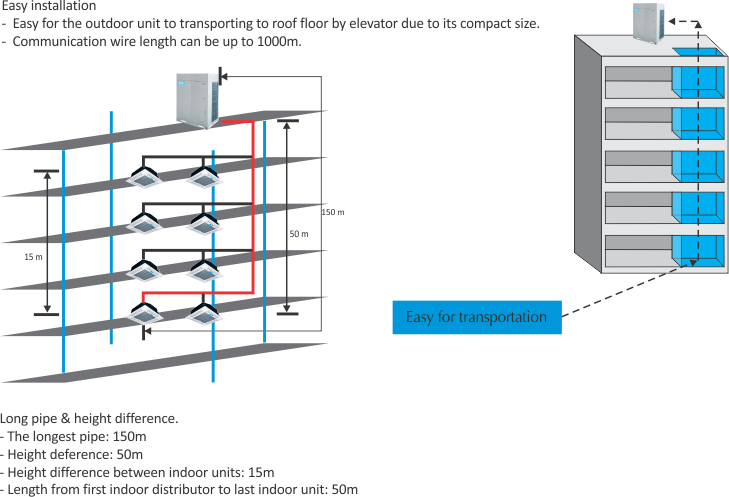

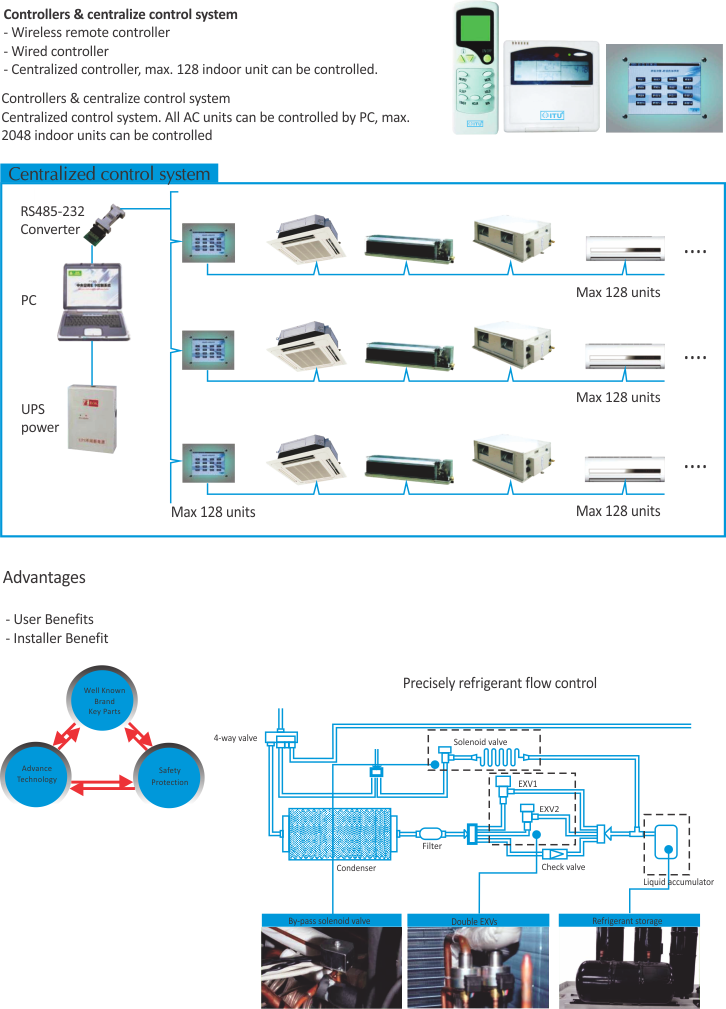

VRF
